Spindle drive RAYWIN R20 230V, 300mm stroke

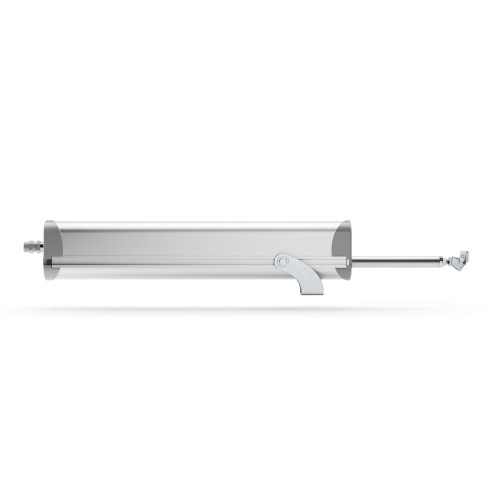

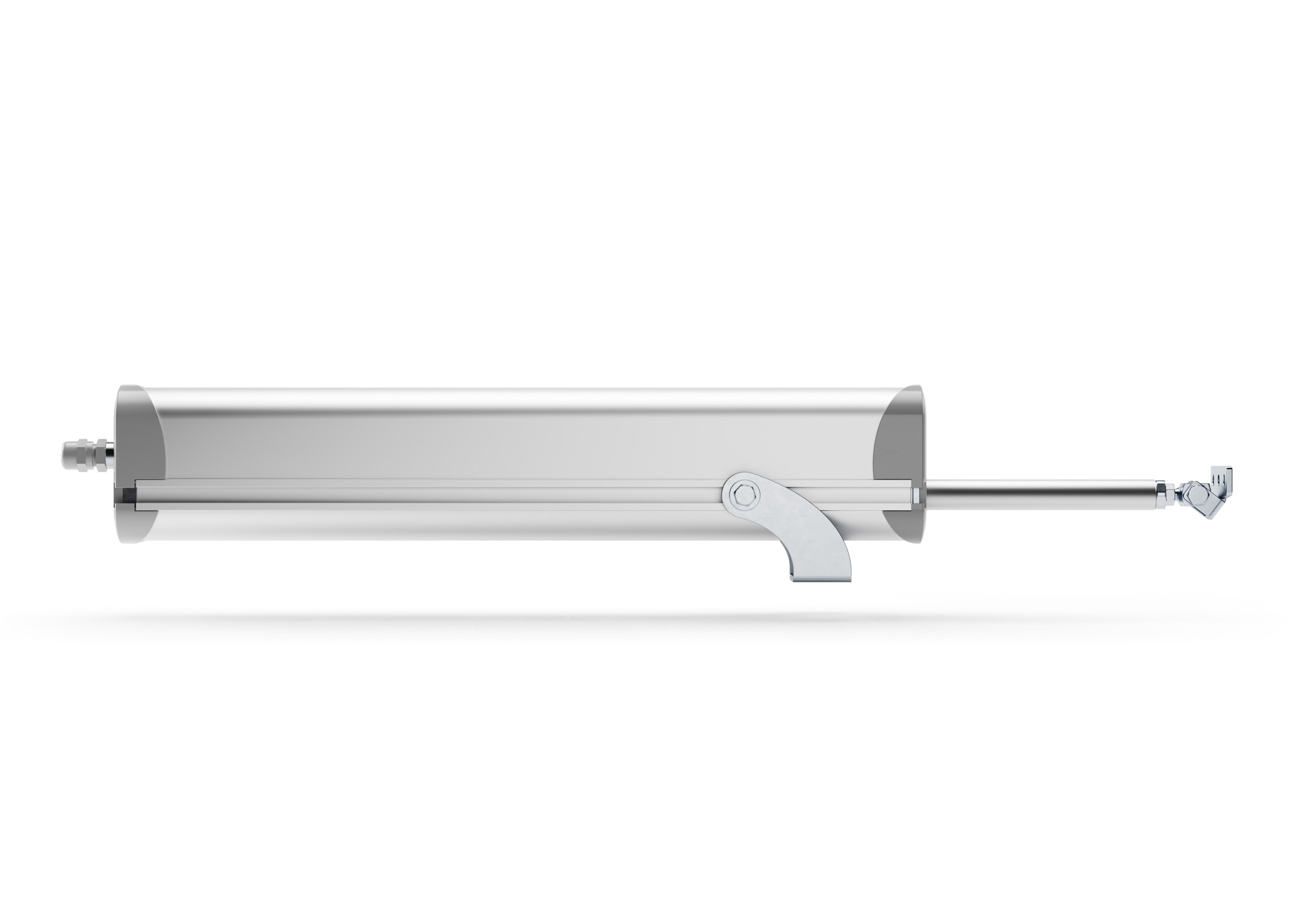

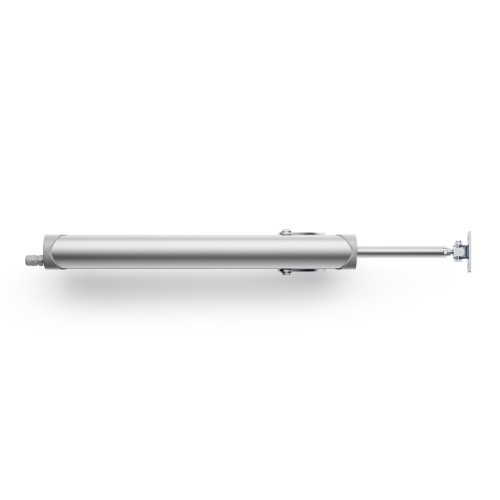

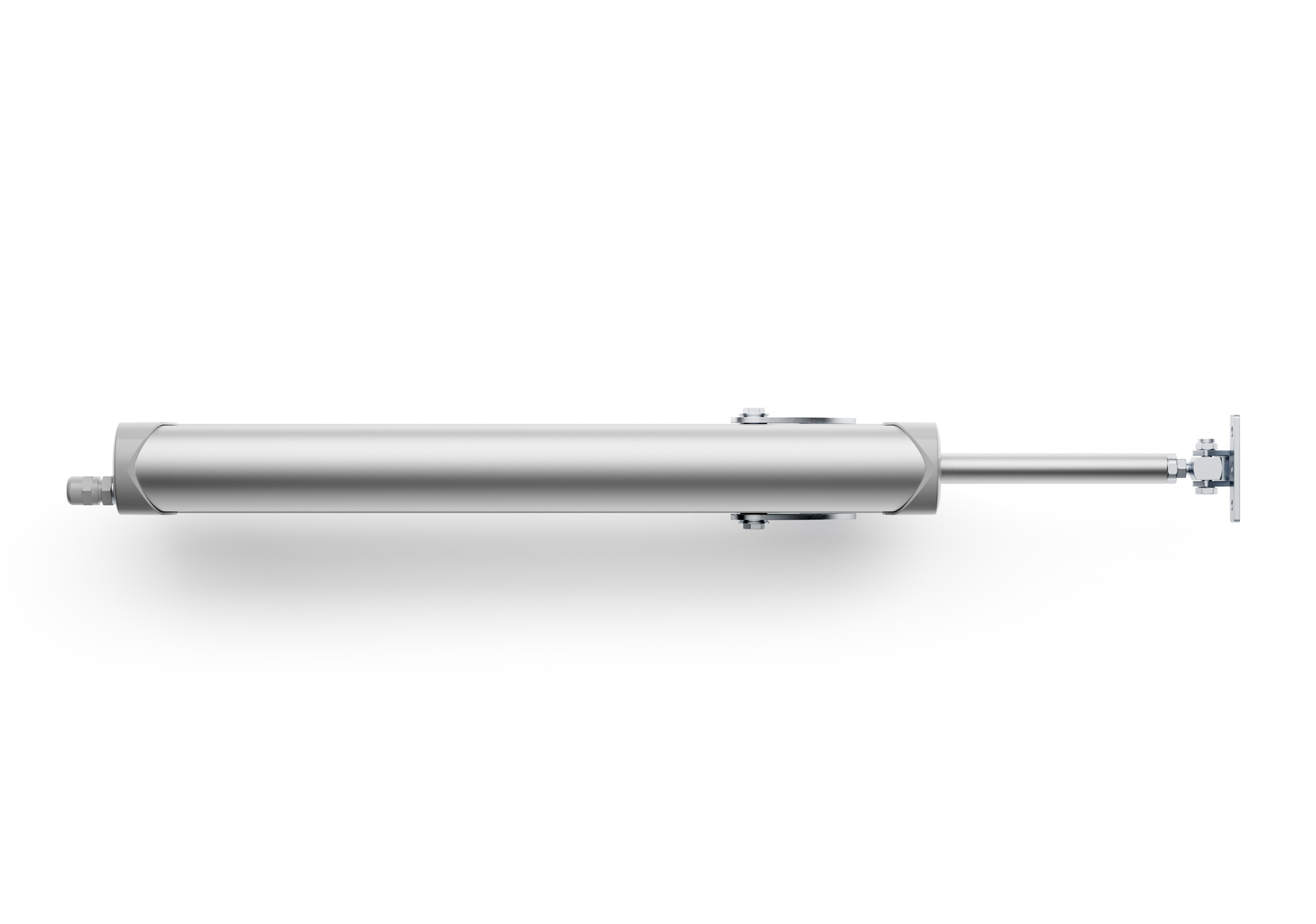

Comunello Mowin Raywin R20 – Electric Spindle Actuator 230V

The Raywin R20 by Comunello Mowin is a high-quality electric linear actuator for the automation of windows, skylights, and louvers. This model represents Italian engineering excellence (“100% Made in Italy”) and combines elegant design with robust technology for long-lasting reliability.

Main Features & Benefits

• High durability: The aluminum housing and steel brackets guarantee extreme stability and long service life.
• Precise control: The opening end stop is controlled via an integrated encoder, enabling stable and millimeter-accurate adjustment.
• Secure closing: The closing end stop operates via power consumption measurement (amperometric detection).
• Intelligent technology: Equipped with Soft Start & Soft Stop as well as reliable obstacle detection to protect the mechanism.
• Flexibility: The stroke can be easily adjusted via a DIP switch combination (105, 180 or 300 mm). Additionally, up to 30 actuators can be connected in parallel.

Technical Specifications (230V Version)

• Power supply: 110 / 230 VAC (50/60 Hz)
• Push and pull force: 200 N
• Available strokes: 105 mm - 180 mm - 300 mm
• Speed (unloaded): 7 mm/s
• Power consumption: 17 W
• Protection rating: IP 4x
• Operating temperature: -5°C to +50°C

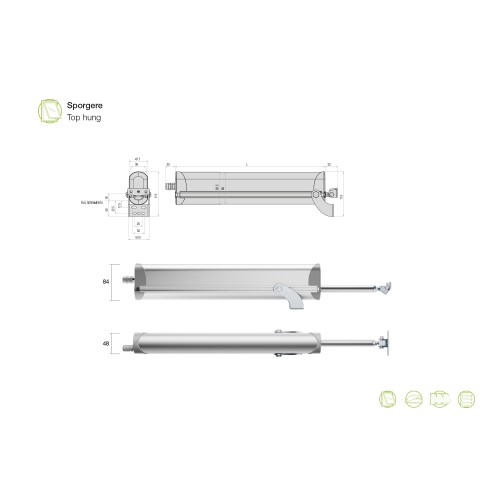

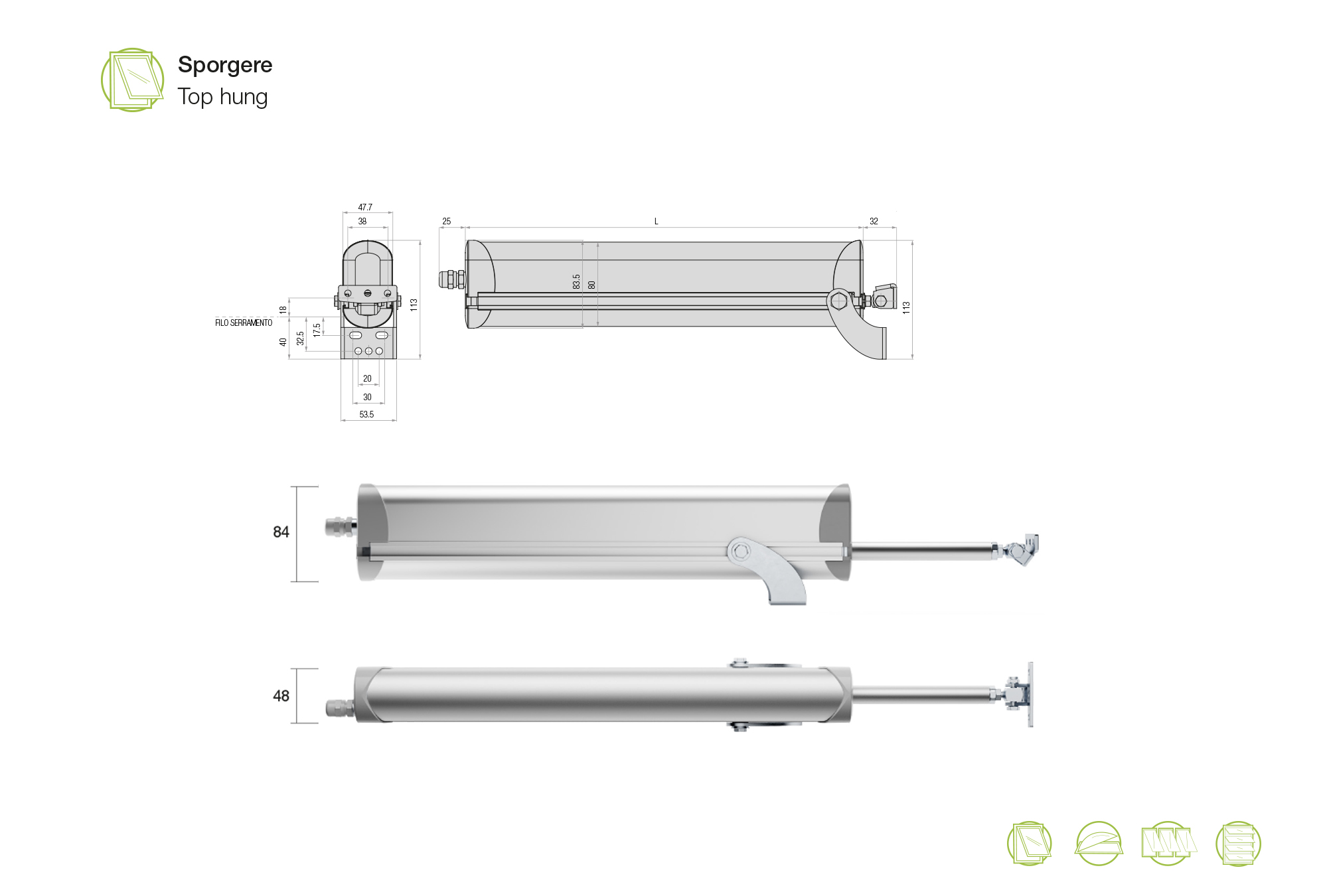

• Dimensions: 488 x 84 x 48 mm

Applications

Ideally suited for top-hung windows and roof domes. Thanks to the adjustable brackets along the housing, the actuator can be flexibly adapted to various installation conditions.

Scope of Delivery

• 1x Spindle actuator Raywin R20 (230V)
• Mounting brackets
• Window fixing bracket
• Installation manual
