MCU Control Unit for 230 V Window Actuators

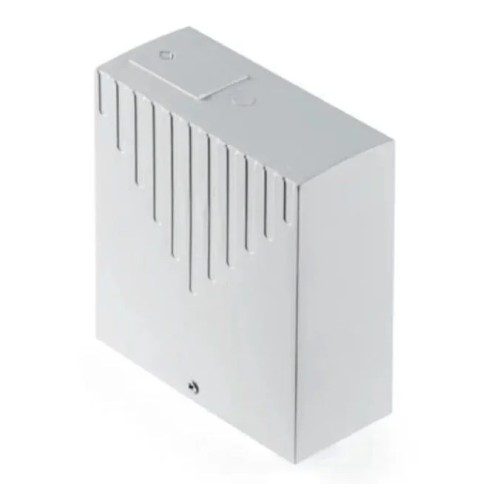

Comunello MCU Control Unit for 230 V Window Actuators – MX00AU03H0W00

The Comunello MCU is an electronic control unit designed to operate one 230 V electric actuator. It is suitable for the automation of windows, vents, roller shutters and sun shading systems.

The connected actuator can be operated using local or central open/close switches. Multiple control units can be interconnected by cable to provide synchronised group control. Inputs are also provided for optional wind, sun and rain sensors, allowing windows or shading systems to react automatically to changing weather conditions.

This standard version does not include an integrated radio receiver. Operation is therefore carried out using wired switches or connected weather sensors.

Technical data:

• Version: standard model without radio receiver
• Supply voltage: 230 V AC, 50/60 Hz
• Motor output: 1 × 230 V AC
• Maximum motor output: 500 W
• Maximum total power: 600 W
• Inputs for wind, sun and rain sensors
• Connections for local and central control switches
• Programmable motor operating time up to 4 minutes
• Operating modes: step-by-step, hold-to-run and Venetian blind mode
• Protection rating: IP54
• Operating temperature: −10 to +55 °C
• Dimensions: 110 × 121 × 47 mm
• Weight: 374 g
• Manufacturer part number: MX00AU03H0W00
• EAN: 8028390952992

The control unit is intended for 230 V actuators and is not suitable for directly operating 24 V actuators. Compatible weather sensors are available separately. Installation and electrical connection must be carried out by a qualified professional.
