Top Chain Drive ACK4 230 V - black

selectable stroke

• 230 V~ / 50 Hz
• Pulling force: 300 N
• Pressing force: 300 N
• Selectable stroke: 100 - 150 - 200 - 250 - 300 - 350 - 400 mm
• Color: black
• Current draw: 0.32 A
• Protection grade: IP 55
• Weight: 1.9 kg
• Size: 288.5 mm x 83 mm x 47.8 mm
• Delivery time approx. 14 days

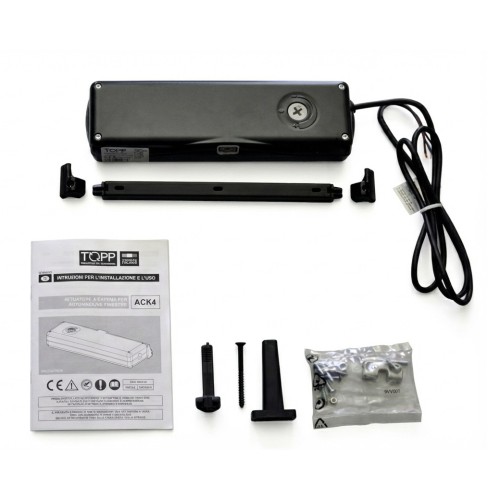

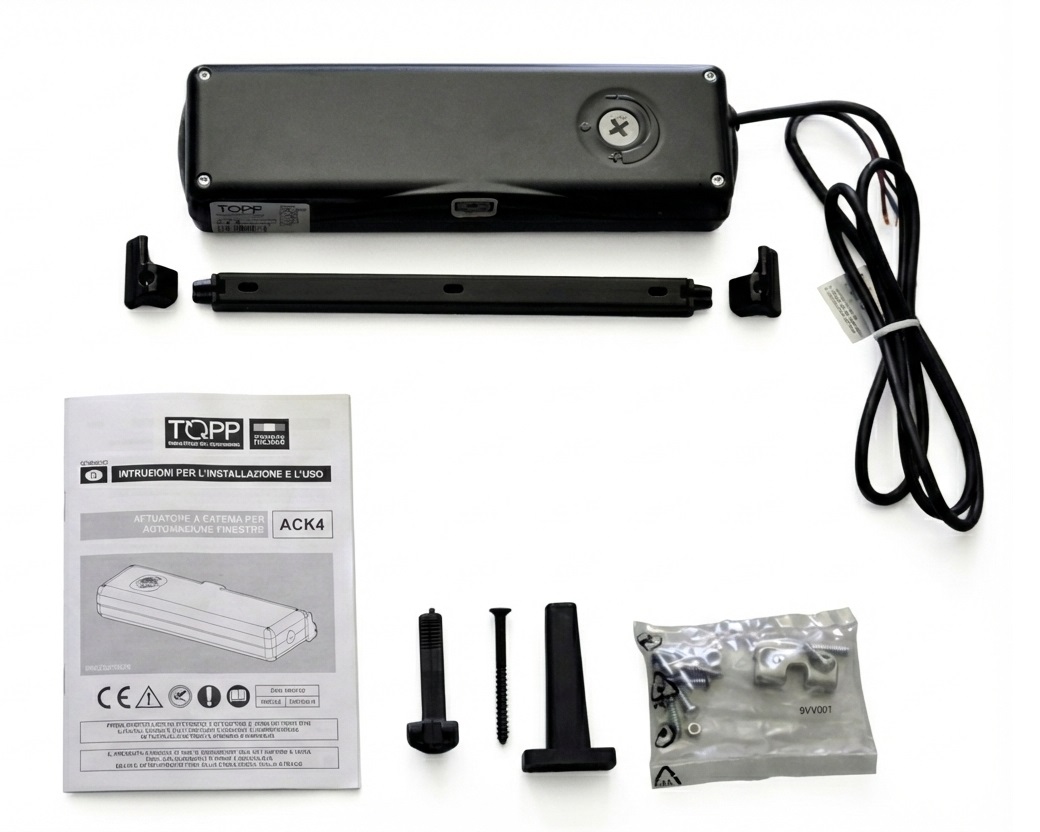

TOPP electric drive model ACK4 with stainless steel double link chain in a special protective housing made of epoxy powder-coated aluminum die-cast, complete with bracket and accessories, for opening tilt and turn windows. Operates at 230V-50 Hz or alternatively at 24V DC. Max. permissible load 300 N. Max. stroke 400 mm. Possibility of setting the electronic limit switch at a distance of 5 cm each with the corresponding adjustment handle. Electronics with acoustic alert for user notification of incorrect installation. Electronic limit switch with adjustment using the corresponding trimmer mounted on both sides of the drive. On request, the version for the synchronization center USA2 is available, which is prepared for the simultaneous operation of 2 drives installed on a single window frame. Protection class for electrical devices IP55. Device with CE marking.
